Functions Available with the LV Super Control/Super Control Panel

Photo shooting mode

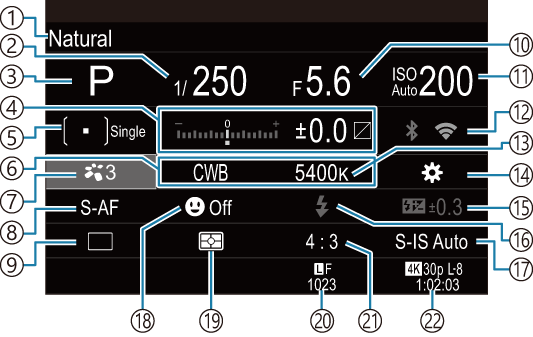

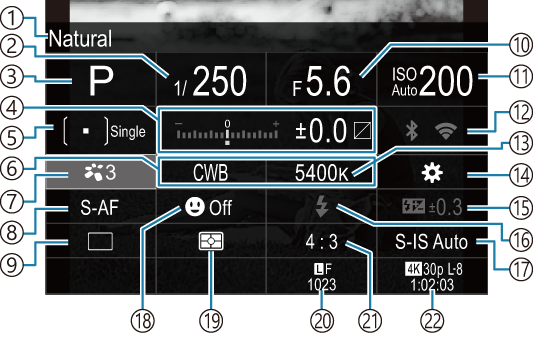

LV super control panel

Super control panel

  1. Name of the currently selected option
  2. Shutter Speed (“Letting the camera choose aperture and shutter speed (P: Program AE)”, “Choosing shutter speed (S: Shutter-Priority AE)”)
  3. Shooting Mode (“Types of shooting modes”)
  4. Exposure Compensation / Highlight & Shadow Control (“Controlling exposure (Exposure Compensation)” / “Using multi-function options (Multi Function)”)
  5. KAF Target Mode (“Choosing an AF Target Mode (AF Target Mode)”)
  6. KWhite Balance (“Adjusting color (WB (white balance))”)
  7. KPicture Mode (“Processing options (KPicture Mode / nPicture Mode)”)
  8. KAF Mode (“Choosing a focus mode (KAF Mode / nAF Mode)”)
  9. Drive (sequential/self-timer shooting) (“Performing the sequential/self-timer shooting”)
  10. Aperture Value (“Letting the camera choose aperture and shutter speed (P: Program AE)”, “Choosing aperture (A: Aperture-Priority AE)”)
  11. KISO Sensitivity (“Changing ISO sensitivity (ISO)”)
  1. Wi-Fi/Bluetooth (“Pairing the Camera and Smartphone (Device Connection)”)
  2. KColor Temperature (“Adjusting color (WB (white balance))”)
  3. KButton Function (“Changing the roles of buttons (Button Settings)”)

  4. Flash Intensity Control (“Adjusting flash output (Flash Exposure Comp.)”)

    Manual Value (“Choosing a Flash Mode”)

  5. Flash (“Choosing a Flash Mode)”)
  6. KImage Stabilizer (“Reducing camera shake (KImage Stabilizer / nImage Stabilizer)”)
  7. Face & Eye Detection (“Tracking Focus on Faces or Eyes of Subjects (Face & Eye Detection)”)
  8. Metering (“Choosing how the camera measures brightness (Metering)”)
  9. KImage Quality, Number of Storable Still Pictures (“Configuring KX”, “Memory Card Capacity: Photos”)
  10. Aspect Ratio (“Setting the image aspect (Image Aspect)”)
  11. nMovie Quality, Available Recording Time (“Configuring nX”, “Memory Card Capacity: Movies”)

Movie recording mode

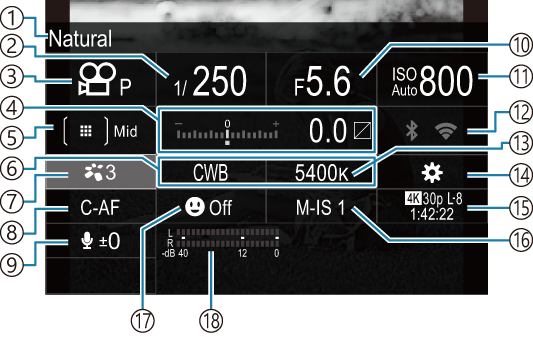

LV super control panel

  1. Name of the currently selected option
  2. Shutter Speed (“Selecting the exposure mode for recording (nMode (Movie exposure mode))”)
  3. nMode (movie exposure mode) (“Selecting the exposure mode for recording (nMode (Movie exposure mode))”)
  4. Exposure Compensation / Highlight & Shadow Control (“Controlling exposure (Exposure Compensation)” / “Using multi-function options (Multi Function)”)
  5. nAF Target Mode (“Choosing an AF Target Mode (AF Target Mode)”)
  6. nWhite Balance (“Adjusting color (WB (white balance))”)
  7. nPicture Mode (“Processing options (KPicture Mode / nPicture Mode)”)
  8. nAF Mode (“Choosing a focus mode (KAF Mode / nAF Mode)”)
  9. Sound Recording Level (“Touch Controls (Silent Controls)”)
  1. Aperture Value (“Selecting the exposure mode for recording (nMode (Movie exposure mode))”)
  2. nISO Sensitivity (“Changing ISO sensitivity (ISO)”)
  3. Wi-Fi/Bluetooth (“Pairing the Camera and Smartphone (Device Connection)”)
  4. nColor Temperature (“Adjusting color (WB (white balance))”)
  5. nButton Function (“Changing the roles of buttons (Button Settings)”)
  6. nMovie Quality, Available Recording Time (“Configuring nX”, “Memory Card Capacity: Movies”)
  7. nImage Stabilizer (“Reducing camera shake (KImage Stabilizer / nImage Stabilizer)”)
  8. Face & Eye Detection (“Tracking Focus on Faces or Eyes of Subjects (Face & Eye Detection)”)
  9. Sound Recording Level Meter (“Touch Controls (Silent Controls)”)
