Information displays while shooting

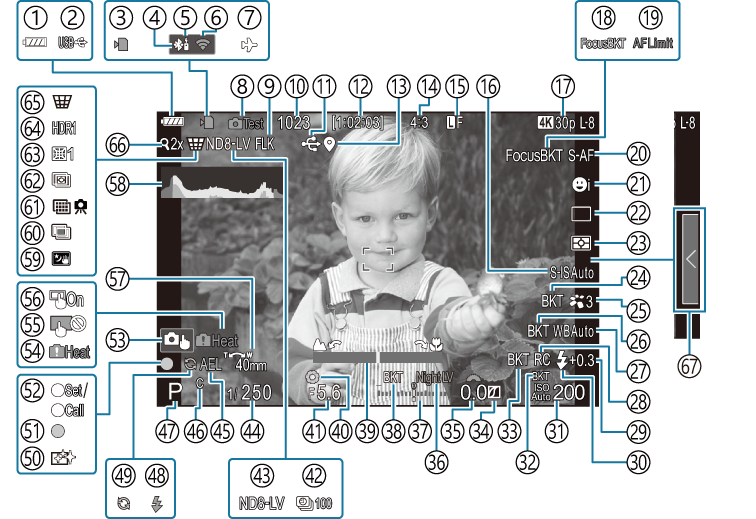

Monitor display during still photography

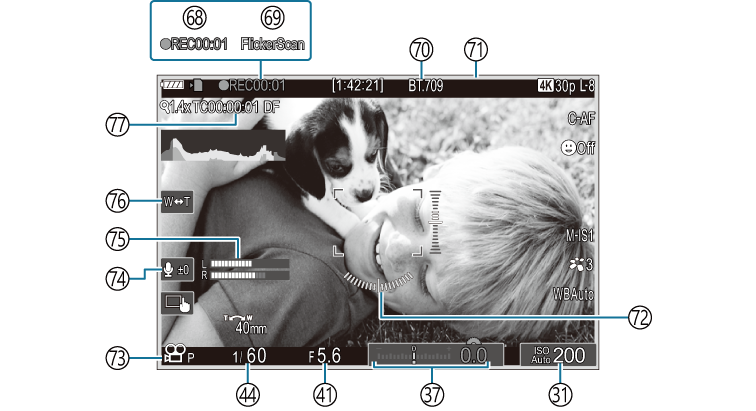

Monitor display during movie mode

  1. Battery level (“Turning the camera on”)
  2. Power supply (“Powering the Camera via USB (Power Supply)”)
  3. Card write indicator (“Removing the battery”, “Removing the card”)
  4. Active Bluetooth® connection (“Wireless Connection Standby Setting for When the Camera Is On (Bluetooth)”, “Wireless connection”)
  5. Remote control (“Wireless connection”)
  6. Wireless LAN connection (“Pairing the Camera and Smartphone (Device Connection)”)
  7. Airplane Mode (“Disabling the camera’s wireless communication (Airplane Mode)”)
  8. Test Picture (“Available Roles”)
  9. Anti-Flicker Shooting (“Reducing Flicker in Photographs (Anti-Flicker Shooting)”)
  10. Number of storable still pictures (“Memory Card Capacity: Photos”)
  11. Active USB connection (“Using the Camera as a Webcam (Webcam)”)
  12. Available Recording Time (“Memory Card Capacity: Movies”)
  13. Bluetooth® Position Information (“Adding position information to images”)
  14. Aspect Ratio (“Setting the image aspect (Image Aspect)”)
  15. KImage Quality (“Configuring KX”)
  16. Image Stabilizer (“Reducing camera shake (KImage Stabilizer / nImage Stabilizer)”)
  17. nMovie Quality (“Configuring nX”)
  18. Focus BKT (“Recording pictures with different focus positions (Focus BKT)”)
  19. AF Limiter (“Lens Focus Range (KAF Limiter)”)
  20. AF Mode (“Choosing a focus mode (KAF Mode / nAF Mode)”)
  21. Face & Eye Detection (“Tracking Focus on Faces or Eyes of Subjects (Face & Eye Detection)”)
  22. Drive (Single, Sequential, Self-Timer, Anti-Shock, Silent Mode, Pro Capture Shooting) (“Performing the sequential/self-timer shooting” / “Shooting without the vibration caused by shutter button operations (Anti-Shock H Settings)” / “Shooting without shutter sound (Silent I Settings)” / “Shooting without a release time lag (Pro Capture shooting)”)
  23. Metering mode (“Choosing how the camera measures brightness (Metering)”)
  24. ART BKT (“Recording copies of one picture with different art filters applied (ART BKT)”)
  25. Picture Mode (“Processing options (KPicture Mode / nPicture Mode)”)
  26. WB BKT (“Recording pictures with varied white balance (WB BKT)”)
  27. White balance (“Adjusting color (WB (white balance))”)
  28. RC Mode (“Wireless Remote Flash Control (A RC Mode)”)
  1. Flash Intensity Control (“Adjusting flash output (Flash Exposure Comp.)”)
  2. Flash Mode (“Choosing a Flash Mode”)
  3. ISO sensitivity (“Changing ISO sensitivity (ISO)”)
  4. ISO BKT (“Recording pictures with varied ISO sensitivity (ISO BKT)”)
  5. FL BKT (“Recording pictures with varied flash level (FL BKT)”)
  6. Highlight & Shadow Control (“Using multi-function options (Multi Function)”)
  7. Exposure compensation value (“Controlling exposure (Exposure Compensation)”)
  8. KNight Vision (“Making the display easier to see in dark places (KNight Vision)”)
  9. Exposure compensation (“Controlling exposure (Exposure Compensation)”)
  10. AE BKT (“Recording a series of shots with varied exposure (AE BKT)”)
  11. Focus Indicator (“Manual Focus Assist (MF Assist)”)
  12. Preview (“Choosing the Behavior of the Control Used for Depth-of-Field Preview (zLock)”)
  13. Aperture Value (“Letting the camera choose aperture and shutter speed (P: Program AE)”, “Choosing aperture (A: Aperture-Priority AE)”)
  14. Interval Shooting (“Shooting automatically with a fixed interval (Interval Shooting)”)
  15. Live ND Shooting (“Slowing the Shutter in Bright Light (Live ND Shooting)”)
  16. Shutter Speed (“Letting the camera choose aperture and shutter speed (P: Program AE)”, “Choosing shutter speed (S: Shutter-Priority AE)”)
  17. AE Lock (“Locking the exposure (AE Lock)”)
  18. Custom Mode (“Saving Custom Settings to the Mode Dial (C Custom Mode)”)
  19. Still Photography Mode (“Letting the camera choose aperture and shutter speed (P: Program AE)”)
  20. Flash (blinks: charging in progress, lights up: charging completed) (“Using a flash (Flash photography)”)
  21. Pro Capture active (“Shooting without a release time lag (Pro Capture shooting)”)
  22. Dust reduction (“Inspecting and Cleaning the Image Sensor”)
  23. AF confirmation mark (“Shooting still pictures”)
  24. SET/CALL function (“Monitor display when using a lens equipped with the SET/CALL function”)
  25. Touch Controls (“Shooting with touch screen operations”)
  26. Internal temperature warning (“Error codes”)
  27. Touch control lock (“Available Roles”)
  28. AF Targeting Pad (“Touch AF Target Selection for Viewfinder Photography (AF Targeting Pad)”)
  29. Zoom operation direction/Focal length
  1. Histogram (“Histogram display”)
  2. Handheld Starlight (“Types of scene modes”)
  3. Multiple Exposure (“Recording multiple exposures in a single image (Multiple Exposure)”)
  4. High Res Shot (“Shooting still pictures in a higher resolution (High Res Shot)”)
  5. Focus Stacking (“Increasing Depth of Field (Focus Stacking)”)
  6. Fisheye Compensation (“Correcting Fisheye Distortion (Fisheye Compensation)”
  7. HDR (“Taking HDR (High Dynamic Range) images (HDR)”)
  8. Keystone Comp. (“Keystone correction and perspective control (Keystone Comp.)”)
  9. Digital Tele-converter (“Digital Zoom (KDigital Tele-converter / nDigital Tele-converter)”)
  10. Live guide recall (“Letting the camera choose the settings (AUTO mode)”)
  1. Recording time (displayed during recording) (“Recording Movies”)
  2. Flicker Scan (“Reducing Flicker Under LED Lighting (KFlicker Scan / nFlicker Scan)”)
  3. cnView Assist (“Preview Options for [nPicture Mode] (cnView Assist)”)
  4. Red frame during movie recording (“Displaying a red frame while recording movies (Red Frame during RREC)”)
  5. Level Gauge (“Level gauge display”)
  6. Movie exposure mode (“Recording movies in movie mode (n)”)
  7. Sound Recording Level (“Touch Controls (Silent Controls)”)
  8. Sound Recording Level Meter (“Touch Controls (Silent Controls)”)
  9. Electronic Zoom (“Touch Controls (Silent Controls)”)
  10. Time Code (“Time Codes (Time Code Settings)”)
