Shooting without a release time lag (Pro Capture shooting)

Capture starts when the shutter button is pressed halfway; the moment the button is pressed the rest of the way down, the camera will start saving the last n captured pictures to the memory card, where n is a number selected before shooting begins. If the button is held all the way down, shooting will continue until the selected number of pictures is recorded. Use this option to capture moments you might otherwise miss due to your subject’s reactions or shutter lag.

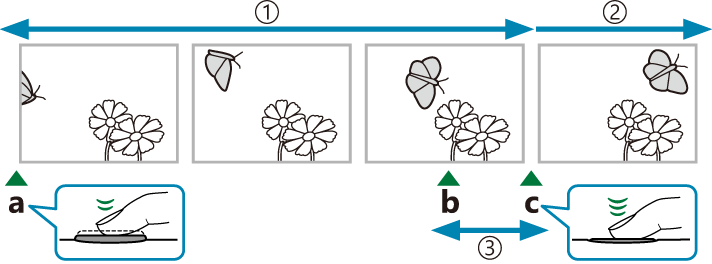

  1. Up to 14 frames
  2. Burst shooting continues
  3. Shutter lag

a Shutter button pressed halfway

b Moment you want

c Shutter button pressed all the way down

Pro Capture (ProCap)

Choose this option if you anticipate that the distance to the subject will change during shooting. The camera shoots at 10 fps. A maximum of 14 frames can be captured before the shutter button is pressed all the way down. If [C-AF], [C-AFJ], [C-AF+TR], or [C-AF+TRJ] is selected for [KAF Mode], the camera will focus before each shot.

  • In [ProCap] mode, the lower limit of the shutter speed is 1/10 s.
  • In [ProCap], the aperture range is limited between maximum aperture and F8.0.
  • [ProCap] cannot be used with Four Thirds system lenses or Micro Four Thirds system lenses from other manufacturers.

Pro Capture H (ProCapH)

Choose this option if the distance to the subject is unlikely to change very much during shooting. The camera shoots at up to 30 fps. A maximum of 14 frames can be captured before the shutter button is pressed all the way down. The camera will use [S-AF] when [C-AF] or [C-AF+TR] is selected for [KAF Mode] and [S-AFJ] when [C-AFJ] or [C-AF+TRJ] is selected.

  • In [ProCapH] mode, the lower limit of the shutter speed is 1/30 s when [Max fps] under [Sequential Shooting Settings] is set to [30fps], 1/20 s when it is set to [20fps], and 1/15 s when it is set to [15fps].

Button

  • gY button U li

Super control panel

  • OK U Drive (g/Y)

Menu

  • MENU U a U 7. Drive Mode U Drive g/Y
  1. Select Pro Capture (ProCap)/Pro Capture H (ProCapH) and press the OK button.

  2. Press the shutter button halfway to start capturing.

    • When the shutter button is pressed halfway, a capture icon (D) will be displayed. If the button is kept pressed halfway for over a minute, capture will end and the D icon will clear from the display. Press the shutter button halfway again to resume shooting.
    • Shooting will continue while the shutter button is pressed all the way down, up to the number of shots selected for [Frame Count Limiter].

  3. Press the shutter button all the way down to start saving pictures to the memory card.
  • Pro Capture is not available while the camera is connected to a smartphone (Wi-Fi).
  • Flickering occurred by fluorescent lights or the large movement of the subject, etc. may cause distortions in images.
  • During capture, the monitor will not go dark and the sound of the shutter will not be heard.
  • The slowest shutter speed is limited.
